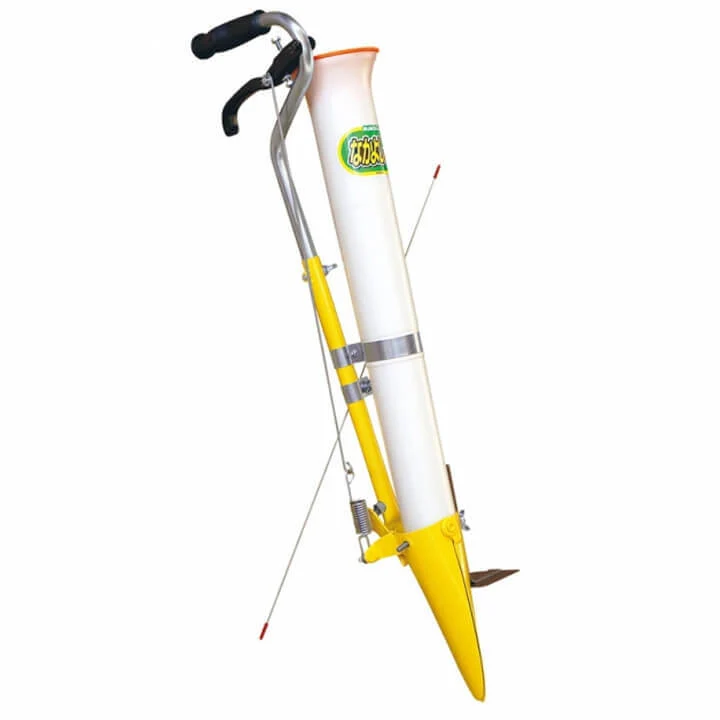

Minoru Manual Jab Planter HPS-3

SUMMARY

Light-weight and convenient Manual Jab Planter.
By using the Manual Jab Planter, you won't need to bend over anymore for planting.

BEFORE YOU ORDER

• Designed for seedlings prepared in cell trays with their root clumps intact.
• Root clumps should be less than 5 cm in length and heavy enough to drop naturally through the planter.
• Opening diameter: 15 to 60 mm.

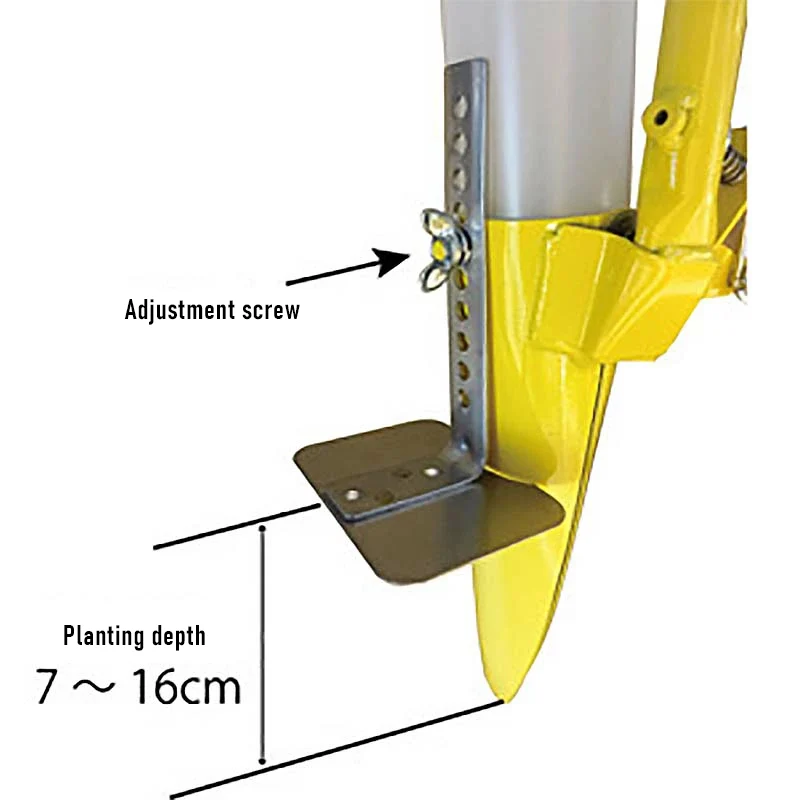

• Planting depth: 70 to 160 mm, adjustable in 10 mm steps.
• The soil must be cultivated to the required planting depth before use.

FEATURES

• The internal diameter is 50 mm.
• Various seedlings with the soil can be used with this Manual Jab Planter.
• You can plant with the Manual Jab Planter by one-hand. It weighs just 1.3kg.

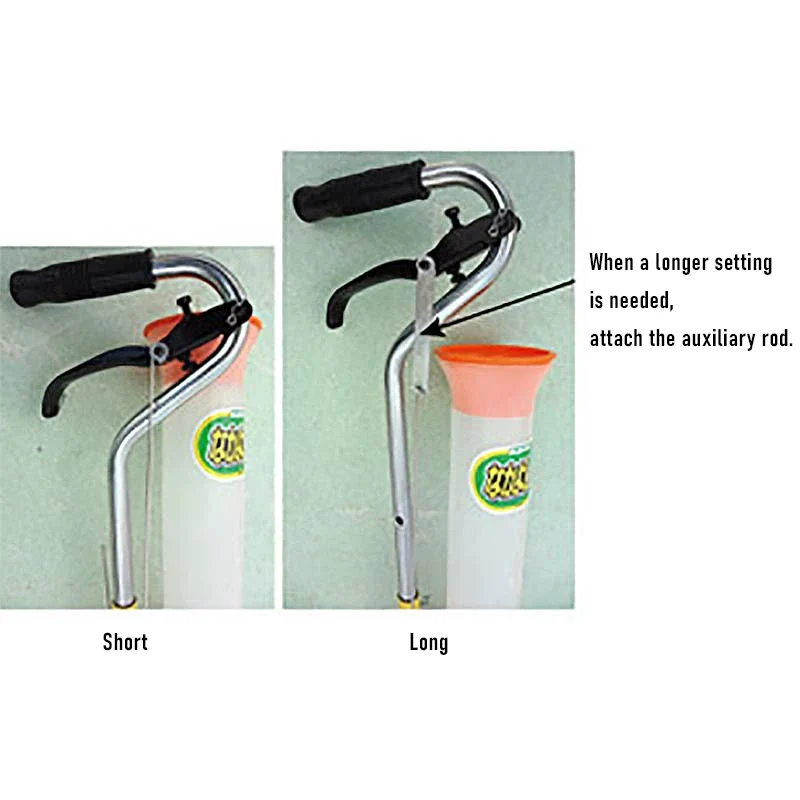

• The handle can be adjusted by two steps.

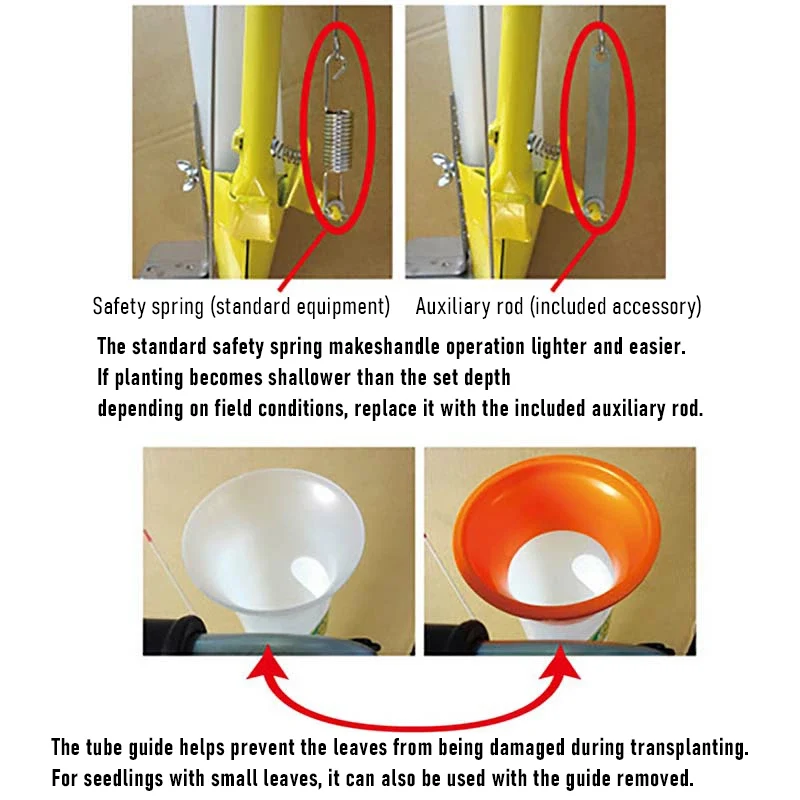

• The safety cover protects the leaves of seedlings.

SPECIFICATIONS

Model Number	HPS-3
Length (mm)	756 or 851 (adjustable 2 steps)
Size (mm)	155 x 192 x 756 / 851 (Two height settings)
Weight (kg)	1.3
Diameter of opening (mm)	15 to 60
Planting depth (mm)	70 to 160 (adjustable by 10mm steps)

HOW TO USE

CONDITIONS

• Seedlings must be prepared in cell trays beforehand
• Seedlings must retain their root clumps.
• Root clumps should be less than 5 cm in length.
• Seedlings need enough weight to drop naturally.
• The ground has to be cultivated to the planting depth. The opening tip of the Manual Jab Transplanter should be going down the ground.
